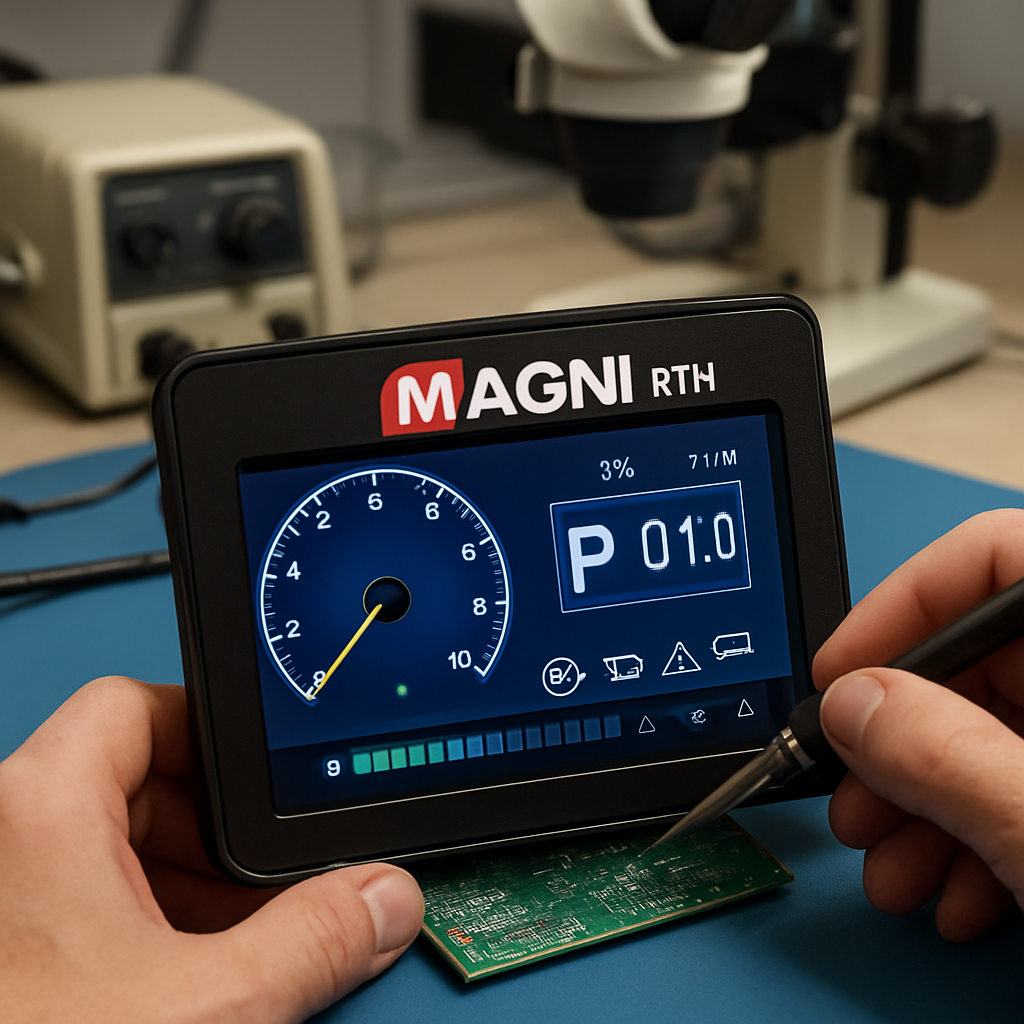

Magni RTH / HTH Telescopic Handler Display & LED Panel Repair — All Models | European Send-In Service

Magni — Italian Engineering, Global Reputation, Niche Electronics

Magni Telescopic Handlers is an Italian manufacturer based in Modena (Emilia-Romagna), a leader in the heavy-class rotating telescopic handler market. Magni machines work on construction sites, shipyards, refineries, steelworks, open-cast mines, and wind turbine installations across Europe — from Scandinavia to Italy, from Germany to Poland.

The display and operator panel is the central point of the operator interface: machine status, SPN/FMI CAN J1939 error codes, Load Moment Indicator (LMI), Deutz / Mercedes / FPT engine diagnostics, MyMagni telematics. A failed display = machine stops. A new original Magni panel costs €2,400–6,800 with 6–12 weeks lead time. Our repair: 5–10 working days, €320–980.

We serve construction companies, equipment hire firms, and service engineers from Poland, Germany, Austria, Czech Republic, Slovakia, Italy, Belgium, Netherlands, France, Denmark, Sweden, Finland and other EU countries.

All Magni Models — RTH, HTH and TH Series

RTH Series — Rotating Telescopic Handler

• Magni RTH 4.16: 4,000 kg capacity, 16m lift height. Compact, for confined spaces.
• Magni RTH 5.18: 5,000 kg, 18m. One of the most popular models in European construction.
• Magni RTH 5.21: 5,000 kg, 21m. Extended reach variant.
• Magni RTH 6.25: 6,000 kg, 25m. Flagship RTH model for large construction sites.
• Magni RTH 6.34: 6,000 kg, 34m. Exceptionally long boom — high-rise buildings and industrial tanks.
• Magni RTH 7.55: 7,000 kg, 55m. Largest RTH — wind turbine and telecommunications mast installation.

HTH Series — Heavy Telescopic Handler

• Magni HTH 10.10: 10,000 kg, 10m. Small HTH for heavy loads at short range.
• Magni HTH 16.10: 16,000 kg, 10m.
• Magni HTH 20.10: 20,000 kg, 10m. Industrial modules, turbines.
• Magni HTH 24.11: 24,000 kg, 11m. Port and steelwork applications.
• Magni HTH 27.11: 27,000 kg, 11m.
• Magni HTH 30.12: 30,000 kg, 12m. One of the most powerful HTH units in the 30-tonne class.
• Magni HTH 35.12: 35,000 kg, 12m. Shipbuilding, power generation.
• Magni HTH 50.14: 50,000 kg, 14m. Largest HTH — unique in the European market.

TH Series — Standard Telescopic Handler

• Magni TH 5.10: 5,000 kg, 10m. Standard non-rotating — general construction.
• Magni TH 7.12: 7,000 kg, 12m.
• Magni TH 10.12: 10,000 kg, 12m.

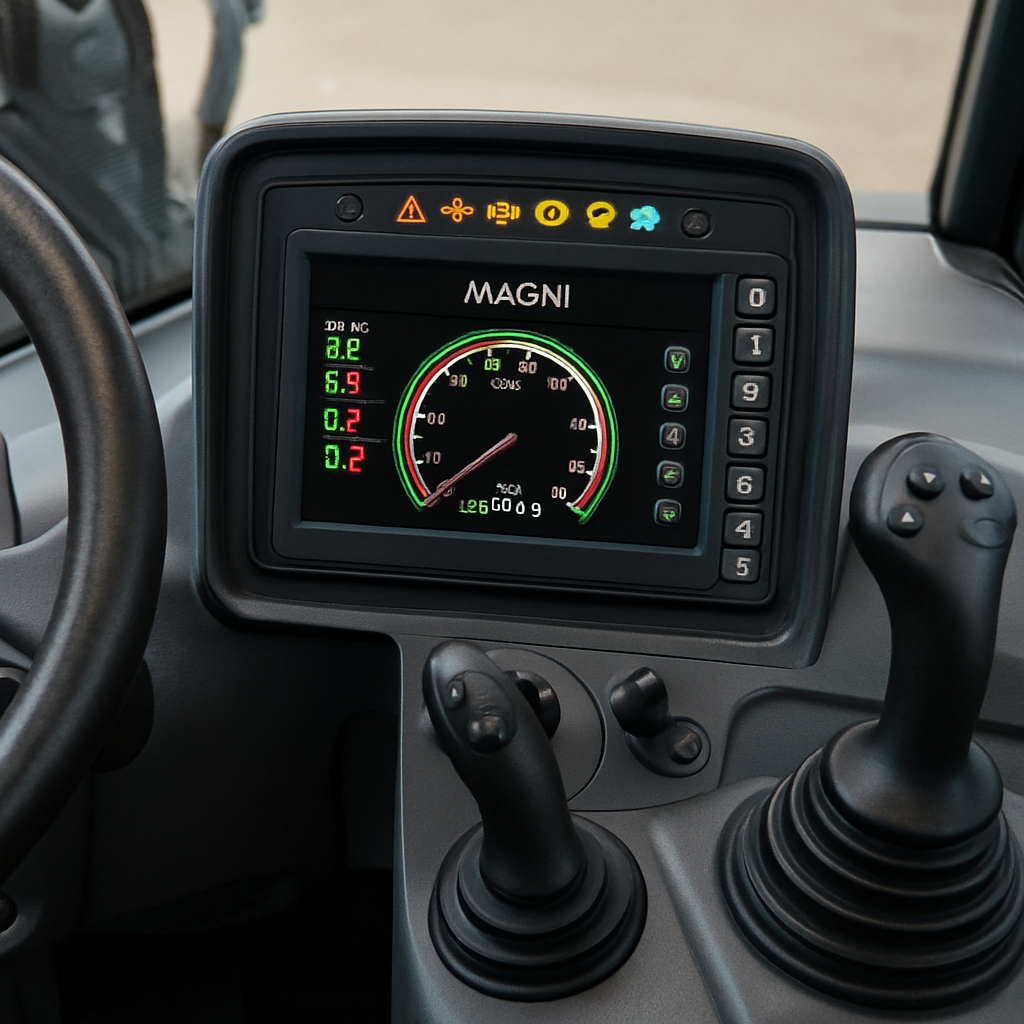

Display and HMI System in Magni Machines

• Main Display (Master Display): 7" or 10" colour TFT LCD (Danfoss, Bosch Rexroth, Axiomatic or proprietary Magni). Shows: hydraulics status, load (%), SPN/FMI error codes, engine parameters (RPM, temp, oil pressure, AdBlue level), MyMagni telematics status, rotation angle, boom angle, fork position.
• LMI Display (Load Moment Indicator): Dedicated LMI module with segmented LED or TFT display. Manufacturers: Hirschmann (Kessler), RaycoWylie, LSI (Loader Sensing International).
• Joystick Console with Display: Danfoss JS7000 / JS1000 proportional joystick with built-in OLED or LED mini-display. PLUS+1 controller module.
• CAN-Gateway Panel (DM1-Gateway): Axiomatic Technologies or proprietary Magni CCU module bridging machine CAN and engine CAN.

Most Common Display Failures in Magni Machines

• Black screen — no image with power on: Failed CCFL backlight (older models) — conversion to LED (vibration-resistant, better sunlight visibility). Failed LED backlight driver chip (TI TPS61187, Maxim MAX16814, Linear LT3517) after 24V supply surge. Cracked FFC/FPC cable (vibration fatigue). Failed LVDS/SPI serializer (TI DS90C363). Repair: €160–380
• Partial image loss (horizontal or vertical stripes): Cracked TFT matrix traces or failed source/gate driver ICs — vibration and extreme temperatures (-20°C to +60°C). Repair: €280–580
• Frozen display — data not refreshing: Failed main processor (MCU: STM32, NXP i.MX6, Renesas RH850) or corrupted Flash/SRAM firmware. Display shows last known state, no touch response, no CAN data. Repair: €240–580
• CAN communication errors ("Display CAN Timeout"): Failed CAN transceiver (TI SN65HVD232, NXP TJA1044), CAN harness break in cab, missing 120Ω termination. Repair: €160–380
• Touchscreen damage: Cracked capacitive glass or broken digitizer connection. Replacement with hardened glass panel with chemical-resistant coating. Repair: €220–480
• Connector corrosion: DE-9, Deutsch DT, Ampseal connectors in RTH/HTH cabs after 3–5 years — loss of CAN signal and display power contact. Repair: €80–200

Pricing

DHL Express shipping Poland / Europe. Repair time: 5–10 working days. Warranty: 12 months. Service open Mon–Fri 08:00–16:00. No-fix no-fee.
