ECU, CCU and CAN Bus in Magni — When Electronics Stop a Million-Euro Machine

A Magni RTH 6.25 telehandler costs €450,000–620,000. An HTH 50.14 costs over €2,000,000. Downtime during a wind turbine installation or shipyard operation means losses of €8,000–25,000 per day. A failed engine ECU or machine CCU blocks the entire operation.

A new original Deutz ECU (DELPHI/DENSO) costs €2,800–6,500. Lead time from Magni or Deutz: 6–14 weeks. Our ECU repair: 5–12 working days, €380–1,200. Shipped from Poland across Europe.

We serve operators, hire companies, and authorised service engineers from Poland, Germany, Italy, France, Netherlands, Belgium, Denmark, Sweden, Norway, Austria, Czech Republic, Slovakia, Hungary, Romania, Bulgaria.

CAN J1939 Architecture in Magni Machines

• CCU (Central Control Unit): Central machine controller — manages hydraulics, LMI overload protection, boom angle sensors, rotation, stabilisers, attachments. Manufacturer: proprietary Magni or Axiomatic Technologies (AC2/MC2 series).
• Engine ECU: Model-dependent — see engine details below.
• DM1-CAN Gateway: Diagnostic Message 1 gateway collecting SPN/FMI fault codes from engine and forwarding to CCU and display. Manufacturer: Magni or IXXAT (Hilscher).
• HCU (Hydraulic Control Unit): Bosch Rexroth proportional valve controller. Separate module in HTH series.
• LMI Controller: Load Moment Indicator controller — Hirschmann (Kessler&Strey), RaycoWylie or LSI.
• Joystick Controller: Danfoss PLUS+1 module (MC012/MC024 series) handling proportional joystick and cab buttons.
• Telematics Unit (MyMagni): GSM/GPRS/4G telematics module — fault logging, geolocation, remote immobilisation.

Engines Used in Magni Machines — ECU and Controller Numbers

Deutz (Germany) — TCD Series

• Deutz TCD 3.6 L4: 55–110 kW, Stage V. RTH 4.16, RTH 5.18. ECU: Bosch EDC17CV56 or Delphi DCM3.7. Common faults: SPN 157 (injection pressure), SPN 110 (coolant temp), SPN 3216 (post-SCR pressure).
• Deutz TCD 4.1 L4: 55–105 kW, Stage V. RTH 5.21, RTH 6.25. ECU: Bosch EDC17CV56. Typical ECU failures: injector driver damage after 24V surge, corrosion of 97-pin Deutsch connector.
• Deutz TCD 6.1 L6: 110–200 kW, Stage V. RTH 6.34, HTH 10.10–HTH 20.10. ECU: Delphi DCM6.2 or Bosch EDC17CV54. Common issues: DPF regeneration (SPN 5356), EGR fault (SPN 2659), AdBlue quality fault (SPN 1234).
• Deutz TCD 12.0 V6: 230–390 kW. RTH 7.55, HTH 24.11, HTH 27.11. ECU: Bosch EDC17CP05, 144-pin MCP connector. Failures: EGR actuator driver damage, NOx sensor fault (SPN 3216, 3226).
• Deutz TCD 16.0 V8: 390–570 kW. HTH 30.12, HTH 35.12, HTH 50.14. ECU: Bosch EDC17CP05 heavy-duty. Characteristic failures: SCR efficiency fault (SPN 1234 FMI 31), DEF/AdBlue dosing system failure, burned injector output transistor after 24V supply surge.

FPT Industrial (Italy) — NEF and Cursor Series

• FPT NEF 45 / NEF 67: 4- and 6-cylinder. Selected HTH 10.10, HTH 16.10. ECU: Bosch EDC7 or FPT Vector, 120-pin Amphenol connector.
• FPT Cursor 9 / Cursor 13: Large 6-cylinder, 260–430 kW. HTH 30.12, HTH 35.12, HTH 50.14 (FPT versions). ECU: Bosch EDC17CP52 or FPT Vector 2.0. Failures: corrupted injection map after flash, DPF soot load fault, EGR system failure.

Mercedes-Benz (Germany) — OM Series

• Mercedes OM 904 LA: 4-cylinder, 100–180 kW. Older generation Magni RTH. ECU: Bosch EDC15C, 55-pin Deutsch D-Sub connector.
• Mercedes OM 926 LA: 6-cylinder, 185–260 kW. RTH 6.25, RTH 6.34 (older generations). ECU: Bosch EDC7UC31. Common failures: PCB damage after electrolytic capacitor failure, "ECM Communication Fault" (SPN 639 FMI 9).

Most Common SPN/FMI Error Codes in Magni and Their Repair

ECU and CCU Failure Details

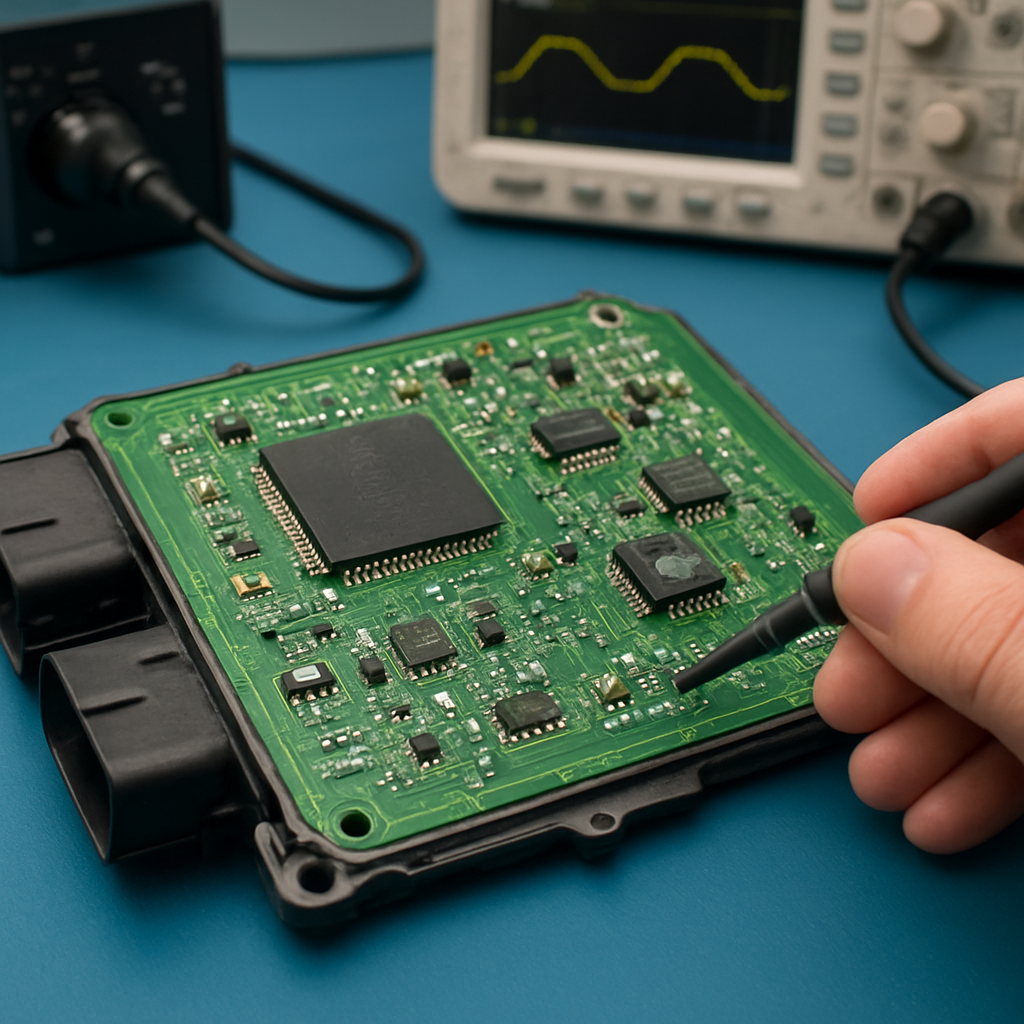

• Engine ECU damage from 24V surge: 35–60V spikes (bad alternator, external devices, engine start) destroy ECU analog/digital inputs, injector output transistors (VNP10N07, DMOS), ADC converters and CAN comms. Repair: failed component identification (oscilloscope, ICT), output transistor replacement, PCB trace repair, ECU Flash reconfiguration. €480–1,200
• ECU connector corrosion (Deutsch, Amphenol, MCP): 55-pin Deutsch D-Sub (OM 904), 97-pin Deutsch HD (Deutz TCD 4.1/6.1), 120-pin Amphenol (FPT NEF), 144-pin MCP (Deutz TCD 12.0) corrode in damp construction site environments. €120–280
• CCU failure: CCU manages all machine electrics except the engine. Failures: joystick no response, no boom movement, angle and tilt sensor errors, machine lock without error codes. Causes: ESD during service, water condensation inside CCU housing, PCB trace crack from vibration. €480–980
• AdBlue / SCR / DPF issues (Stage V engines): SPN 1234 FMI 31 (SCR efficiency) — ECU limits power to 60%. SPN 3216 (NOx sensor downstream) — Bosch LSU 4.9 or Continental sensor replacement + ECU adaptive learning. SPN 5356 (DPF regeneration) — active regeneration or filter replacement. AdBlue crystallisation in winter — dosing unit replacement, pipe heating. €180–380 calibration / €580–1,200 full ECU repair
• Danfoss PLUS+1 module failure (MC012/MC024): After cab flooding, ESD or voltage surge. Symptom: joystick dead, no boom movement despite no engine fault codes. Requires PLUS+1 Developer programmer and Magni service code. €320–720

Pricing

DHL Express shipping Poland / Europe within 24h of despatch. Repair time: 5–12 working days. Warranty: 12 months. Service open Mon–Fri 08:00–16:00. No-fix no-fee.
